High-Precision Drop Test System For Packaging Impact And Reliability Testing

MOQ: 1
preço: Customized
Embalagem padrão: caixa de madeira compensada
Período de entrega: 30 dias
Método do pagamento: T/T
Capacidade de abastecimento: 10 conjuntos por mês
Informações
Descrição do produto
Informações detalhadas
Lugar de origem
China
Marca
Sinuo
Certificação
Calibration Certificate(Cost Additional)
Número do modelo
SN1220
altura de gota:
200–1500 mm (personalizável)
Peso do teste:
0–100 kg (personalizável)
Erro de ângulo:
<2°
Orientação de Queda:
Rosto, Borda
Tamanho máximo do espécime:
1200 × 800 × 800 mm (C × L × A)
Tamanho da placa de impacto:
1400 × 1900 × 14 mm (chapa de ferro maciço, 14 mm de espessura)
Descrição do produto

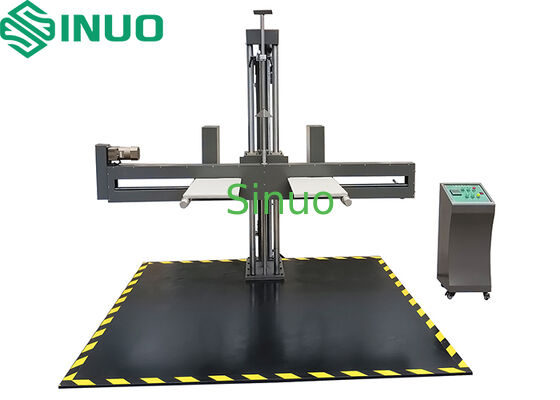

High-Precision Drop Test System For Packaging Impact And Reliability Testing



Product information


This Drop Test System is mainly used to evaluate the impact effects experienced by packaged goods during transportation and handling, in order to determine the shock resistance of the packaging and assess the rationality of the packaging design.



The machine conducts vertical free-fall impact tests on the specimen. The specimen can be dropped freely on its faces, edges, or corners, and the drop height can be preset. Once the specimen reaches the set height, the lifting mechanism stops automatically and holds the position. The distance between the supporting arms can be adjusted electrically according to the product size.



The release mechanism is designed to be flexible and reliable, ensuring that the specimen experiences no external force at the moment of release or during free fall, thereby guaranteeing an accurate drop posture and test result.



Features


1. Precision design and manufacturing, elegant appearance, and ultra-quiet operation.

2. Thickened base plate to withstand the impact force of falling products; the surface is treated with anti-rust baked paint for long-term use without deformation or corrosion.

3. Drop platform surface coated with anti-static baked paint for a refined appearance.

4. Adjustable clamping fixtures to accommodate various product shapes and sizes.

5. Electrically driven lifting mechanism for stable and durable performance.

6. Electromagnetic release system for controlled drop operation.

7. Adjustable arm spacing via electric motor buttons, suitable for testing multiple product types.



Technical Parameters


Drop height

200–1500 mm (customizable)

Maximum test weight

0–100 kg (customizable)

Maximum specimen size

1200 × 800 × 800 mm (L × W × H)

Impact base plate size

1400 × 1900 × 14 mm (solid iron plate, 14 mm thick)

Drop angle error

< 2°

Drop height error

±10 mm

Drop orientations

Face, Edge

Lifting mode

Motor-driven

Height display

Digital counter with calibration function

Drop control

Electromagnetic release, activated by drop button

Reset method

Manual reset

Safety protection

Upper and lower limit switches on the lifting column

Machine dimensions

Approx. 1600 × 2000 × 1850 mm (W × D × H)

Equipment weight

Approx. 550 kg

Power supply

AC 380 V, 50 Hz

Power consumption

1.5 kW

Environmental Conditions

Ambient temperature: 5 °C – +28 °C (average within 24 hours ≤ 28 °C).
Relative humidity: ≤ 85% RH.

Power supply

Three-phase five-wire system

Voltage range

AC 380 V

Frequency tolerance

(50 ± 0.5) Hz

Ground resistance

< 4 Ω

Notice:The user should provide an independent air or power switch with sufficient capacity dedicated to this equipment.




Tag:

equipamento de teste do hipot da C.A.,

equipamento de teste do fio do fulgor,

equipamento de teste bonde da instalação
