Name: IEC 60691 Intelligent Thermal Fuse Tester 0-300A Endurance & Overload Test Equipment
Brand: Sinuo Testing Equipment Co. , Limited
SKU: SN9816
Availability: InStock

MOQ:	1
preço:	Customized
Embalagem padrão:	Carton
Período de entrega:	20 dias
Método do pagamento:	T/T.
Capacidade de abastecimento:	20 conjuntos por mês

Informações

Descrição do produto

Informações detalhadas

Lugar de origem

China

Marca

Sinuo

Certificação

Calibration Certificate (Cost Additional)

Número do modelo

SN9816

Classificação de fusíveis:

45A

Corrente do teste:

3.0 ~ 300.00A

Escala atual do teste:

0 ~ 300A

Escala da tensão do teste:

0 ~ 20V

Intervalo de configuração de tempo:

1S ~ 99S

Intervalo de tempo de fusível:

10ms ~ 99s

Precisão do tempo de teste:

≤ 1%

Ciclos de teste:

1 ~ 9999 vezes

Destacar:

IEC 60691 thermal fuse tester

300A overload test equipment

switch life tester with warranty

Descrição do produto

IEC 60691 Intelligent Thermal Fuse Tester 0-300A Endurance & Overload Test Equipment

Product Description

The Intelligent Thermal Fuse Tester is a specialized instrument designed for testing the performance of small fuses, including fuse blowing time and current measurement. It complies with GB/T 9364.1-2015, GB 9364.3-2018, GB/T 9816.1-2023 Clause 10.4, and IEC 60691-2023 standards for fuse, endurance, and overload testing requirements. Equipped with a 7-inch touch screen for display and parameter setting, and controlled by an ARM processor, this programmable tester delivers test currents up to 300A. Featuring smart operation, high precision, and reliable safety, it is an ideal solution for fuse testing applications.

Features

Advanced DC power supply design with zero-voltage full-bridge/half-bridge topology and PWM control for fast dynamic response and high accuracy in voltage and current output.
Programmable constant voltage and constant current modes.
Supports four test modes: Fuse Blowing Test (M1), Endurance Test (M2), Step Test (M3), and Overload Test (M4).
Ultra-fast response time in the millisecond range.
Multiple protection functions (overvoltage, overcurrent, etc.), with automatic cut-off and audible/visual alarm.
High conversion efficiency with ZVZCS switching technology.
Real-time data recording for easy review and analysis.
Smooth and accurate switching between constant voltage and constant current with no overshoot.
Large 7-inch touch screen interface with full digital control for user-friendly operation.

Technical Specifications

Item	Specification
Input Voltage	AC 220V ±10%
Fuse Rating	45A
Input Frequency	50Hz / 60Hz
Operating Environment	Temperature: 10℃ ~ 40℃, Humidity: ≤75% RH
Color	Grey-white
Weight	Approx. 25kg
Test Current Range	0 ~ 300A
Test Voltage Range	0 ~ 20V
Test Modes	Fuse Time Test M1, Endurance Test M2, Step Test M3, Overload Test M4

Fuse Time Test M1

Item	Specification
Test Current	3.0 ~ 300.00A
Time Setting Range	1s ~ 99s
Fuse Time Range	10ms ~ 99s
Test Time Accuracy	≤ ±1ms + 0.3%RD (RD = actual operating time)
Operating Time	1s ~ 59m59s

Endurance Test M2

Item	Specification
Test Current	0 ~ 300.00A
On/Off Time	Up to 9999h59m59s
Test Time Accuracy	≤ 1%
Test Cycles	1 ~ 9999 times

Step Test M3

Item	Specification
Initial Current Range	0 ~ 300.00A
Final Current Setting	0 ~ 300.000A
Step Current Value	0.5A ~ 1A
Step Holding Time Range	Up to 9999h59m59s
Test Time Accuracy	≤ 1%

Overload Test M4

Item	Specification
Current Range	3 ~ 300.00A
Duration Setting	1 ~ 20ms (default: 3ms)
Interval Setting	1 ~ 99s (default: 10s)
Test Cycles	1 ~ 9999 times

Other Parameters

Item	Specification
Display	7-inch touch screen
Control Method	ARM control
Protection Functions	Overcurrent, overtime, overtemperature protection with audible alarm
Data Storage	Supports saving of test data
USB Function	Supports USB flash drive for data export
Test Fixture	1 set (sample provided by user)
Reference Dimensions	440mm (L) × 550mm (D) × 250mm (H)

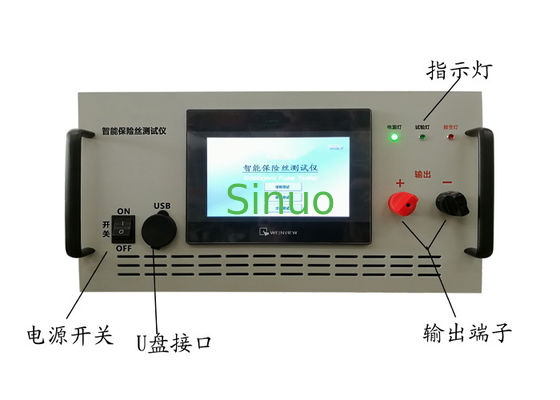

IEC 60691 Intelligent Thermal Fuse Tester 0-300A Endurance & Overload Test Equipment 0
